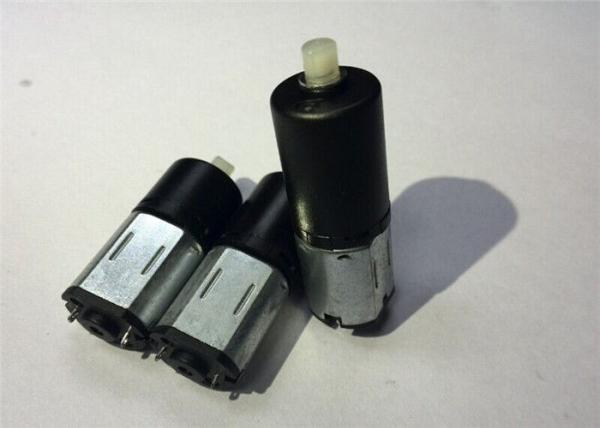

High Stability 12mm DC Motor Gearbox Plastic Shaft for Digital Camera

Product Categories

SHANGHAI DAITTO MACHINERY CO.,LTD

Contact Now

Name: High Stability 12mm DC Motor Gearbox Plastic Shaft for Digital Camera
Brand: DAITTO
Price: 1 USD

Add to Cart

High Stability 12mm 3.0V DC Motor Gearbox Plastic Shaft for Digital Camera

Specifications

Technical Parameter	product	High Stability 12mm DC Motor Gearbox Plastic Shaft for Digital Camera
	motor	DC brush motor
	torque	54 gf.cm or customized
	rated speed	156 rpm
	reduction ratio	64 or customized
	noise level	less than 40dB
	life time	500 hours
	working temperature	-40 to 95℃
Certification	ROHS/ISO9001/ISO14001/SGS/TS16949
Suitable for	Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.
OSD Language	English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean
The basic specifications for reference only, specifications can be customized.

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
DA012012-16	3.0	717	90	625	130	18	1.8	25.7	250	800	16	10.7
DA012012-24	3.0	478	90	417	130	27	2.6		250	800	24
DA012012-36	3.0	319	90	278	130	41	4.0		250	800	36
DA012012-64	3.0	174	90	156	135	54	5.3	29.5	350	1000	64	14.5
DA012012-96	3.0	116	90	104	135	81	7.9		350	1000	96
DA012012-144	3.0	77	90	69	135	122	11.9		350	1000	144
DA012012-216	3.0	52	90	46	135	182	17.9		350	1000	216

above specifications just for reference and customizable according to requirements

Main Products

High-precision DC PLANETARY GEARBOX MOTOR, stepper motors, coreless motors & screws and plastic mesons.

Cost-effective solution for MOTION control & AUTOMAITON applications: medical, semiconductor, pumps, robotics, CNC, etc.
