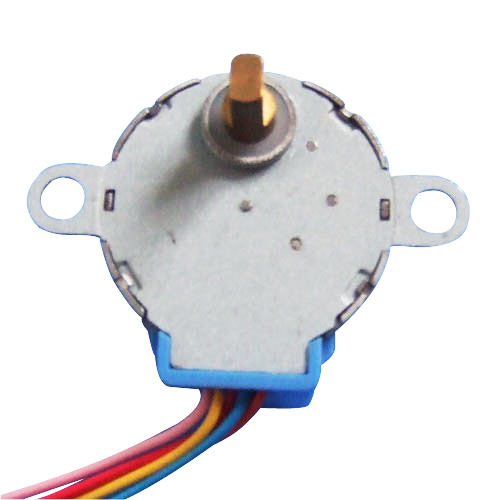

    Stepper Motor 24BYJ 28BYJ

    Stepper Motor 24BYJ 28BYJ
    main technical paramater:
    Rated voltage
    12VDC
    Number of Pole
    4
    Speed Variation Ratio
    1/64
    Stride Angle
    5.625o /64
    DC resistance
    200Stepper Motor 24BYJ 28BYJStepper Motor 24BYJ 28BYJ7%(25Stepper Motor 24BYJ 28BYJ)
    Idle In-traction Frequency
    >600Hz
    Idle Out-traction Frequency
    >1000Hz
    In-traction Torque
    >39.2mN.m(120Hz)
    Self-positioning Tor
    >34.3mN.m
    insulated resistance
    >10MStepper Motor 24BYJ 28BYJ(500V)
    insulated electricity power
    600VAC/1mA/1s
    Insulation grade
    A
    Rise in Temperature
    <35K(120Hz)
    Noise
    <35dB(100Hz,No load,10cm)
    Weight
    About 40g

    application scope: Mainly used in wind guiding board of fission air conditioner in house, wind heating board etc
