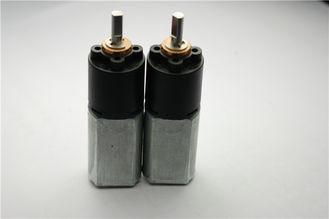

9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor

    Buy cheap 9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor from wholesalers

    Buy cheap 9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor from wholesalers
    • Buy cheap 9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor from wholesalers

    9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor

    Ask Lasest Price
    Brand Name : DAITTO
    Certification : ISO,CE
    Model Number : DA020020-216
    • Product Details
    • Company Profile

    9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor

    Type:DC Motor BrushVoltage:9V Or Customised
    Material:Plastic Or MetalDiameter:20mm
    Reduction Ratio:216:1Rated Load Torque:1500 Gf.cm
    Rated Load Speed:26 RpmRated Load Current:215 MA
    No Load Speed:31 RpmNo Load Current:90 MA

    9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor

    Specifications

    ModelTypical Application ParametersMax Rated Torque of Gear BoxMax Instant Torque of Gear BoxGear RatioGear Box Length
    RatedAt No LoadAt Rated LoadOverall Length
    VoltageSpeedCurrentSpeedCurrentTorque
    VDCrpmmA(MAX)rpmmA(MAX)gf.cmmN.mmmgf.cmgf.cmmm
    DA020020-369.01848015821537937.243.4130039003618.3
    DA020020-649.0104908921544443.648.4260078006423.3
    DA020020-969.069905921566765.42600780096
    DA020020-1449.0469040215100098.126007800144
    DA020020-2169.03190262151500147.120006000216

    above specifications just for reference and customizable according to requirements


    Quick Details


    Technical Parameter

    diameter

    20mm

    voltage

    9V

    motor

    DC brush motor

    noise level

    less than 40dB

    life time

    300 hours

    working temperature

    -40 to 95℃

    tolerance

    <0.3mm

    Certification

    ROHS/ISO9001/ISO14001/SGS/TS16949

    Suitable for

    Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.

    OSD Language

    English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

    The basic specifications for reference only, specifications can be customized.
